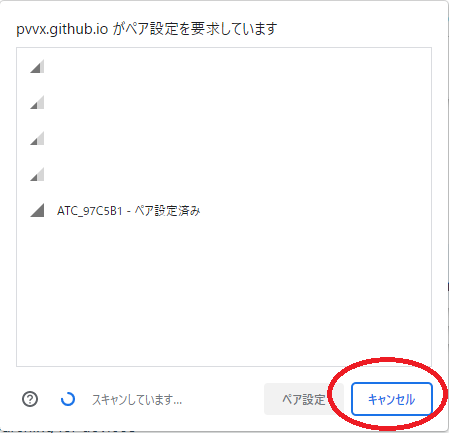

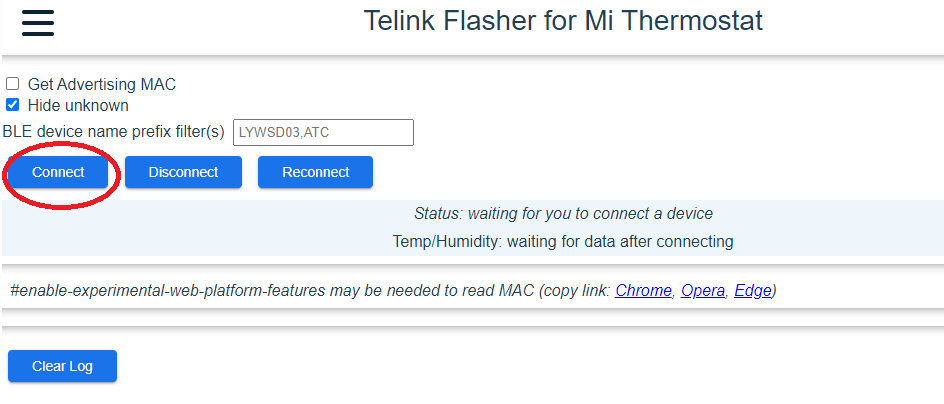

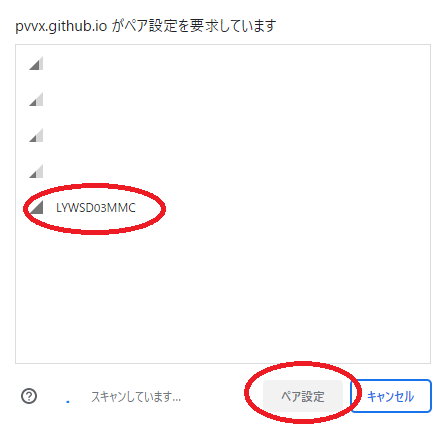

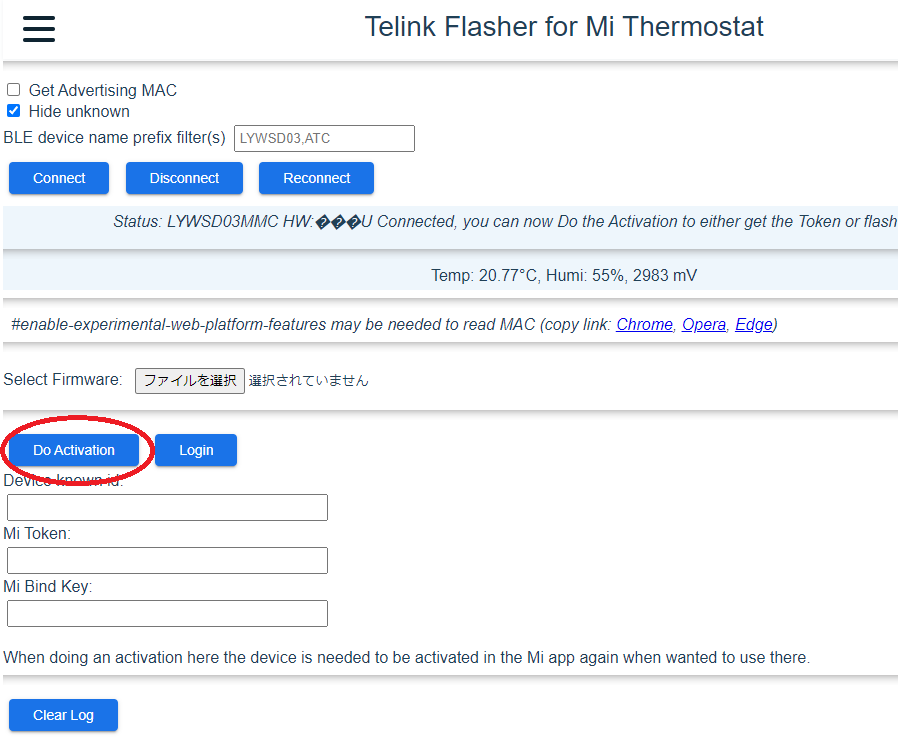

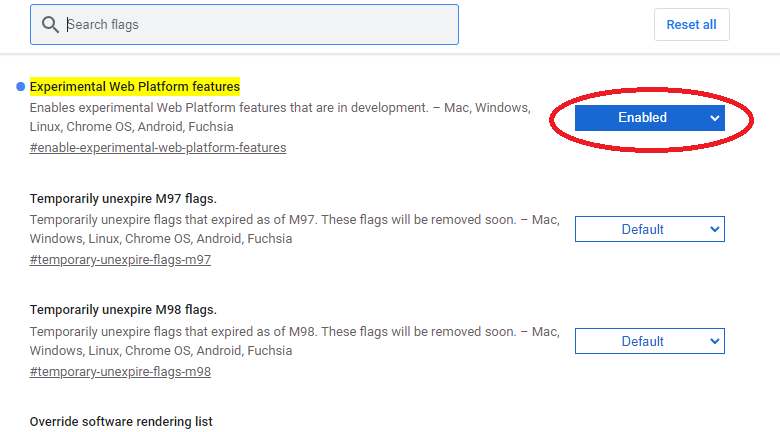

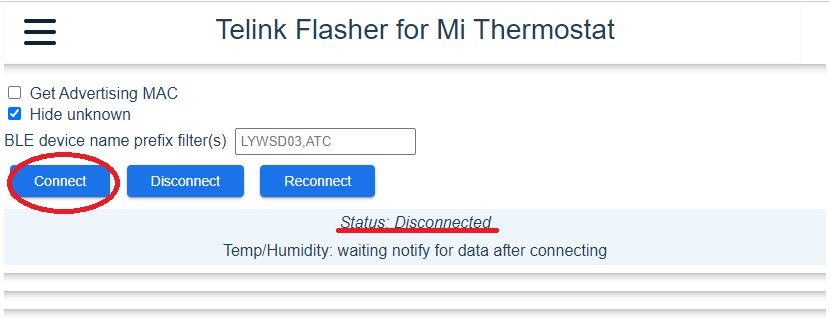

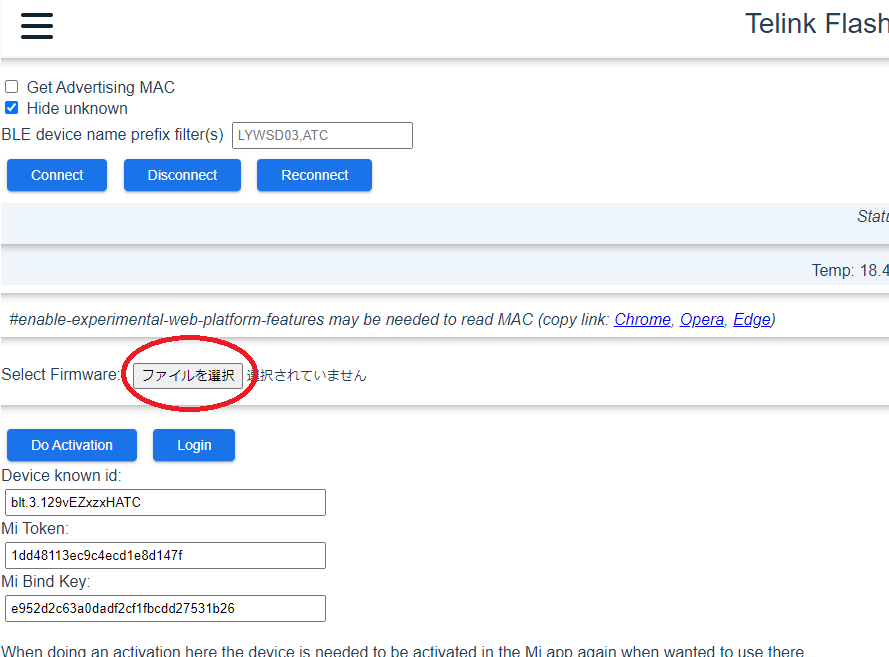

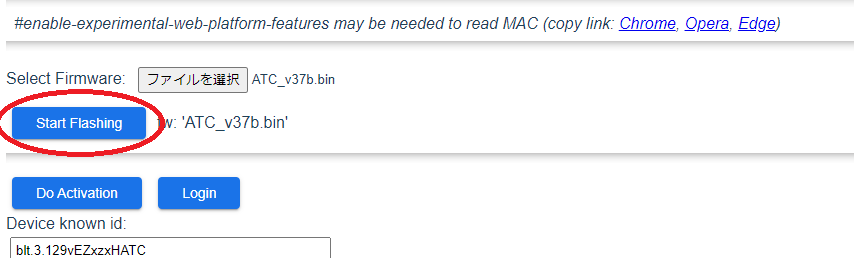

600円の温湿度計(LYWSD03MMC)とESP32でIoT

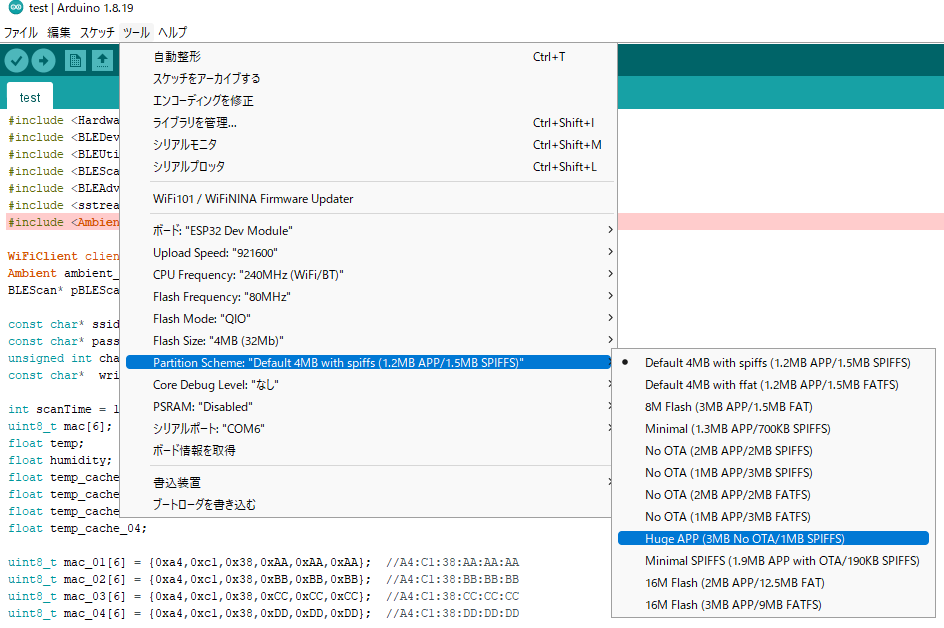

#include <HardwareSerial.h>
#include <BLEDevice.h>
#include <BLEUtils.h>
#include <BLEScan.h>
#include <BLEAdvertisedDevice.h>
#include <sstream>
#include <Ambient.h>

WiFiClient client;
Ambient ambient_01;
BLEScan* pBLEScan;

const char* ssid = "ここにWifiのSSIDを入力";
const char* password = "ここにWifiのパスワードを入力";

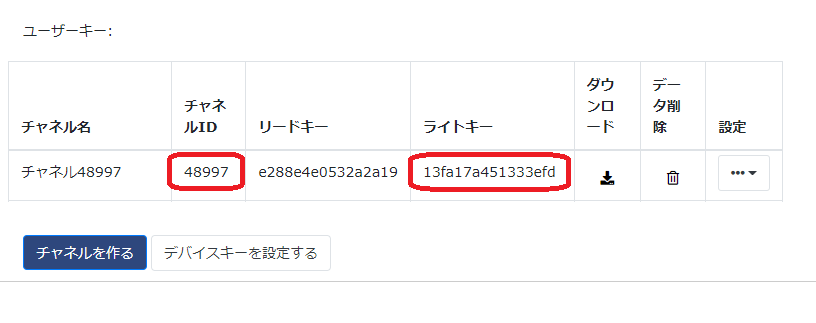

unsigned int channelId_01 = ここにAmbientのチャネルIDを入力;
const char*  writeKey_01  = "ここにAmbinentのライトキーを入力";

int scanTime = 120; // seconds
uint8_t mac[6];
float temp;
float humidity;
float temp_cache_01;
float temp_cache_02;
float temp_cache_03;
float temp_cache_04;

uint8_t mac_01[6] = {0xa4,0xc1,0x38,0xAA,0xAA,0xAA};  //A4:C1:38:AA:AA:AA
uint8_t mac_02[6] = {0xa4,0xc1,0x38,0xBB,0xBB,0xBB};  //A4:C1:38:BB:BB:BB
uint8_t mac_03[6] = {0xa4,0xc1,0x38,0xCC,0xCC,0xCC};  //A4:C1:38:CC:CC:CC
uint8_t mac_04[6] = {0xa4,0xc1,0x38,0xDD,0xDD,0xDD};  //A4:C1:38:DD:DD:DD


void printBuffer(uint8_t* buf, int len) {
  for (int i = 0; i < len; i++) {
    Serial.printf("%02x", buf[i]);
  }
  Serial.print("\n");
}

void parse_value(uint8_t* buf, int len) {
  int16_t x = buf[3];
  if (buf[2] > 1)
    x |=  buf[4] << 8;
  switch (buf[0]) {
    case 0x0D:
      if (buf[2] && len > 6) {
        temp = x / 10.0;
        x =  buf[5] | (buf[6] << 8);
        humidity = x / 10.0;
        Serial.printf("Temp: %.1f°, Humidity: %.1f %%\n", temp, humidity);
      }
      break;
    case 0x04: {
        temp = x / 10.0;
        Serial.printf("Temp: %.1f°\n", temp);
      }
      break;
    case 0x06: {
        humidity = x / 10.0;
        Serial.printf("Humidity: %.1f%%\n", humidity);
      }
      break;
    case 0x0A: {
        Serial.printf("Battery: %d%%", x);
        if (len > 5 && buf[4] == 2) {
          uint16_t battery_mv = buf[5] | (buf[6] << 8);
          Serial.printf(", %d mV", battery_mv);
        }
        Serial.printf("\n");
      }
      break;
    default:
      Serial.printf("Type: 0x%02x ", buf[0]);
      printBuffer(buf, len);
      break;
  }
}


// Sensor No.1 - No.4 //

void ambient_01_set(void){
  if(memcmp(mac, mac_01, 6) == 0){
    Serial.printf("Sensor No.1 ... Temp: %.2f°, Humidity: %.1f%%\n", temp, humidity);
    if (abs(temp - temp_cache_01) < 1){
      ambient_01.set(1, temp);
      ambient_01.set(2, humidity);
      //Serial.println(" - ambient_01 set 1");
    }
    temp_cache_01 = temp;
    }
  else if(memcmp(mac, mac_02, 6 )== 0){
    Serial.printf("Sensor No.2 ... Temp: %.2f°, Humidity: %.1f%%\n", temp, humidity);
    if (abs(temp - temp_cache_02) < 1){
      ambient_01.set(3, temp);
      ambient_01.set(4, humidity);
      //Serial.println(" - ambient_01 set 2");
    }
    temp_cache_02 = temp;
  }
  else if(memcmp(mac, mac_03, 6 )== 0){
    Serial.printf("Sensor No.3 ... Temp: %.2f°, Humidity: %.1f%%\n", temp, humidity);
    if (abs(temp - temp_cache_03) < 1){
      ambient_01.set(5, temp);
      ambient_01.set(6, humidity);
      //Serial.println(" - ambient_01 set 2");
    }
    temp_cache_03 = temp;
  }
  else if(memcmp(mac, mac_04, 6 )== 0){
    Serial.printf("Sensor No.4 ... Temp: %.2f°, Humidity: %.1f%%\n", temp, humidity);
    if (abs(temp - temp_cache_04) < 1){
      ambient_01.set(7, temp);
      ambient_01.set(8, humidity);
      //Serial.println(" - ambient_01 set 2");
    }
    temp_cache_04 = temp;
  }
}

class MyAdvertisedDeviceCallbacks: public BLEAdvertisedDeviceCallbacks {

    uint8_t* findServiceData(uint8_t* data, size_t length, uint8_t* foundBlockLength) {
      uint8_t* rightBorder = data + length;
      while (data < rightBorder) {
        uint8_t blockLength = *data + 1;
        //Serial.printf("blockLength: 0x%02x\n",blockLength);
        if (blockLength < 5) {
          data += blockLength;
          continue;
        }
        uint8_t blockType = *(data + 1);
        uint16_t serviceType = *(uint16_t*)(data + 2);
        //Serial.printf("blockType: 0x%02x, 0x%04x\n", blockType, serviceType);
        if (blockType == 0x16) { // https://www.bluetooth.com/specifications/assigned-numbers/generic-access-profile/
          // Serial.printf("blockType: 0x%02x, 0x%04x\n", blockType, serviceType);
          /* 16-bit UUID for Members 0xFE95 Xiaomi Inc. https://btprodspecificationrefs.blob.core.windows.net/assigned-values/16-bit%20UUID%20Numbers%20Document.pdf */
          if (serviceType == 0xfe95 || serviceType == 0x181a) { // mi or custom service
            //Serial.printf("blockLength: 0x%02x\n",blockLength);
            //Serial.printf("blockType: 0x%02x, 0x%04x\n", blockType, serviceType);
            *foundBlockLength = blockLength;
            return data;
          }
        }
        data += blockLength;
      }
      return nullptr;
    }

    void onResult(BLEAdvertisedDevice advertisedDevice) {
      uint8_t* payload = advertisedDevice.getPayload();
      size_t payloadLength = advertisedDevice.getPayloadLength();
      uint8_t serviceDataLength = 0;
      uint8_t* serviceData = findServiceData(payload, payloadLength, &serviceDataLength);
      if (serviceData == nullptr || serviceDataLength < 15)
        return;
      uint16_t serviceType = *(uint16_t*)(serviceData + 2);
      //Serial.printf("Found service '%04x' data len: %d, ", serviceType, serviceDataLength);
      //printBuffer(serviceData, serviceDataLength);
      if (serviceType == 0xfe95) {
        if (serviceData[5] & 0x10) {
          mac[5] = serviceData[9];
          mac[4] = serviceData[10];
          mac[3] = serviceData[11];
          mac[2] = serviceData[12];
          mac[1] = serviceData[13];
          mac[0] = serviceData[14];
          Serial.printf("MAC: "); printBuffer(mac, 6);
        }
        if ((serviceData[5] & 0x08) == 0) { // not encrypted
          serviceDataLength -= 15;
          payload = &serviceData[15];
          while (serviceDataLength > 3) {
            parse_value(payload, serviceDataLength);
            serviceDataLength -= payload[2] + 3;
            payload += payload[2] + 3;
          }
          Serial.printf("count: %d\n", serviceData[8]);
        } else {
          if (serviceDataLength > 19) { // aes-ccm  bindkey
            // https://github.com/ahpohl/xiaomi_lywsd03mmc
            // https://github.com/Magalex2x14/LYWSD03MMC-info
            Serial.printf("Crypted data[%d]! ", serviceDataLength - 15);
          }
          Serial.printf("count: %d\n", serviceData[8]);
        }
      } else { // serviceType == 0x181a
        if(serviceDataLength > 18) { // custom format
          mac[5] = serviceData[4];
          mac[4] = serviceData[5];
          mac[3] = serviceData[6];
          mac[2] = serviceData[7];
          mac[1] = serviceData[8];
          mac[0] = serviceData[9];
          //Serial.printf("MAC: ");
          //printBuffer(mac, 6);
          temp = *(int16_t*)(serviceData + 10) / 100.0;
          humidity = *(uint16_t*)(serviceData + 12) / 100.0;
          uint16_t vbat = *(uint16_t*)(serviceData + 14);
          //Serial.printf("Temp: %.2f°, Humidity: %.2f%%, Vbatt: %d, Battery: %d%%, flg: 0x%02x, cout: %d\n", temp, humidity, vbat, serviceData[16], serviceData[18], serviceData[17]);
        } else if(serviceDataLength == 17) { // format atc1441
          Serial.printf("MAC: ");printBuffer(serviceData + 4, 6);
          int16_t x = (serviceData[10]<<8) | serviceData[11];
          temp = x / 10.0;
          uint16_t vbat = x = (serviceData[14]<<8) | serviceData[15];
          Serial.printf("Temp: %.1f°, Humidity: %d%%, Vbatt: %d, Battery: %d%%, cout: %d\n", temp, serviceData[12], vbat, serviceData[13], serviceData[16]);
        }
      }
      ambient_01_set();
    }
};


void setup() {
  Serial.begin(115200);
  ambient_01.begin(channelId_01, writeKey_01, &client);
  Serial.println("Scanning...");
  BLEDevice::init("");
  pBLEScan = BLEDevice::getScan();
  pBLEScan->setAdvertisedDeviceCallbacks(new MyAdvertisedDeviceCallbacks(), true);
  pBLEScan->setInterval(625); // default 100
  pBLEScan->setWindow(625);  // default 100, less or equal setInterval value
  pBLEScan->setActiveScan(true);
}

void loop() {
  BLEScanResults foundDevices = pBLEScan->start(scanTime, false);
  pBLEScan->stop();
  pBLEScan->clearResults();

  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
      delay(1000);
  }
  ambient_01.send();
  Serial.println(" - ambient send");
  WiFi.disconnect(true);
}

Ambientの設定

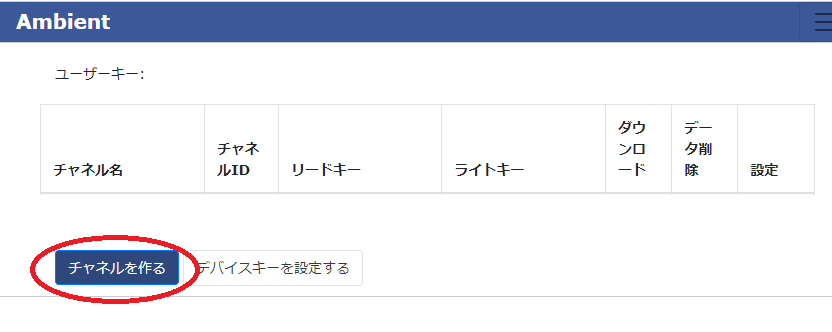

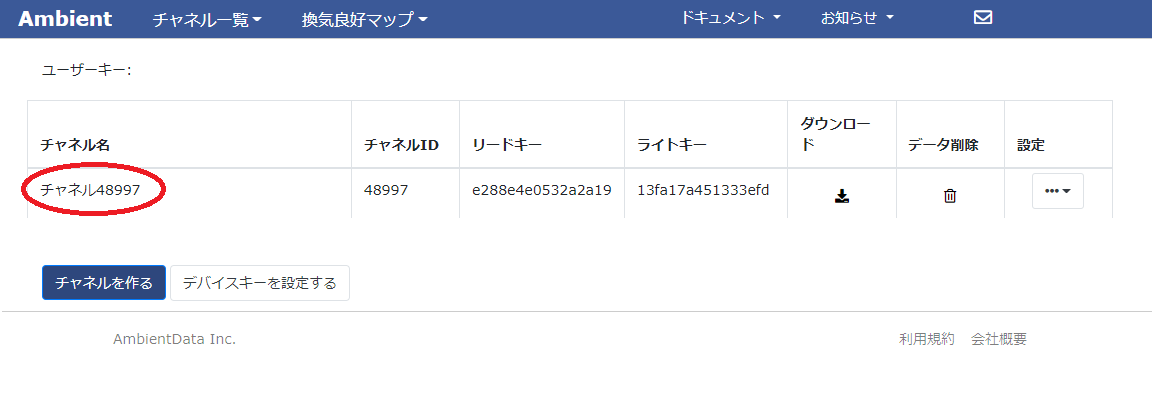

1. Ambeintにログインして、設定するチャネル名を選択する。

2. 「+」マークをクリック。グラフが表示される。

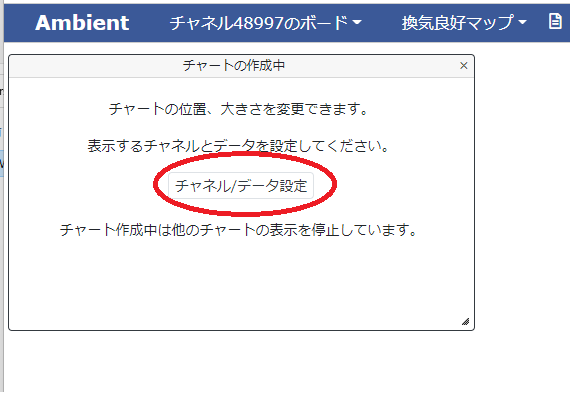

3. 「チャネル/データ設定」を選択する。

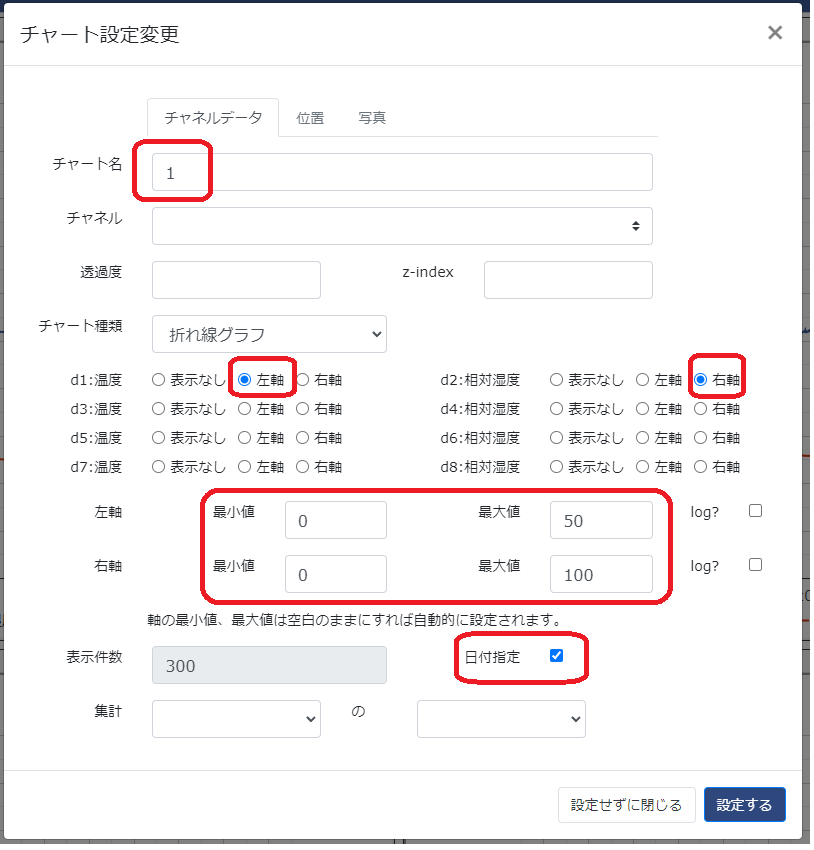

4. 赤枠の部分を設定して「設定する」を選択する。

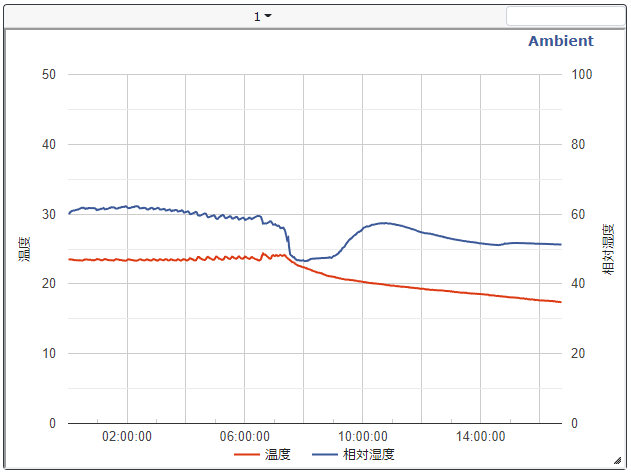

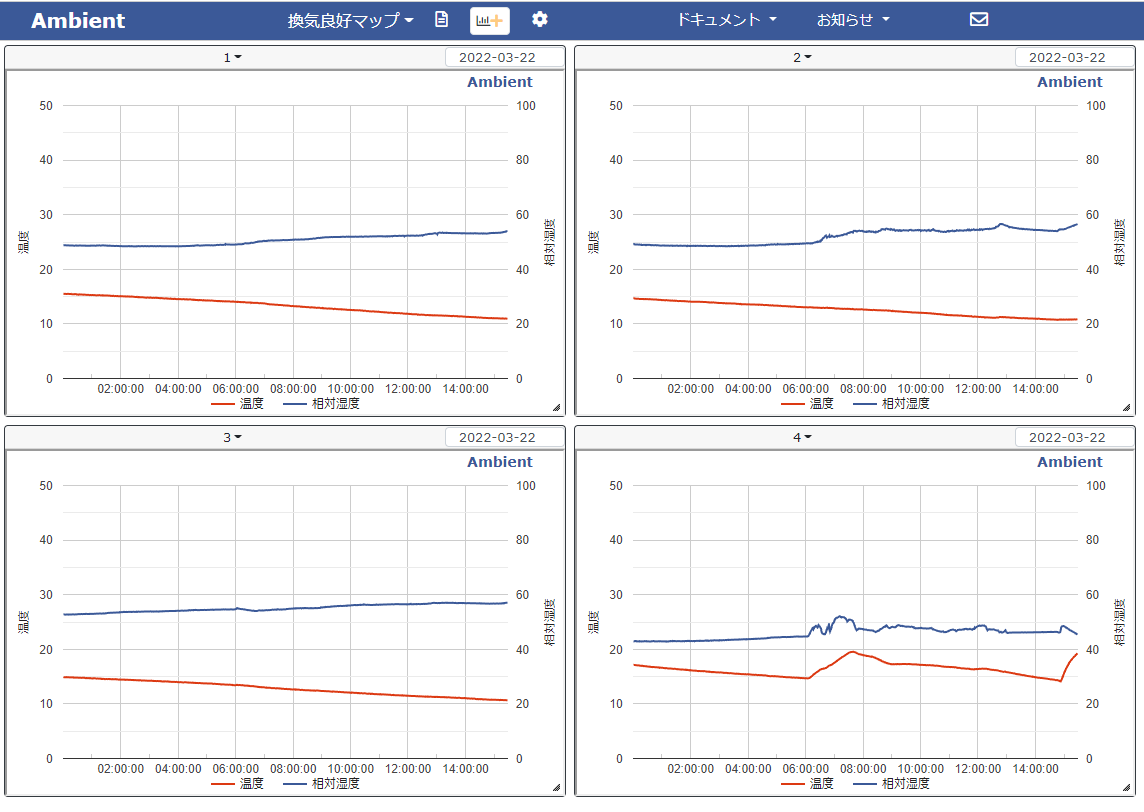

5. 温湿度計とESP32がBLEで接続されており、さらにESP32がWifiに接続してAmbientにデータを送信していれば、約２分後からグラフ表示が始まる。

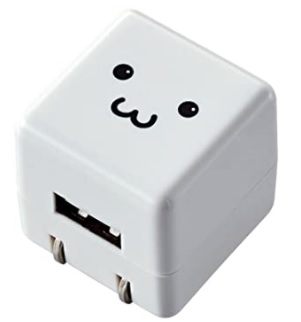

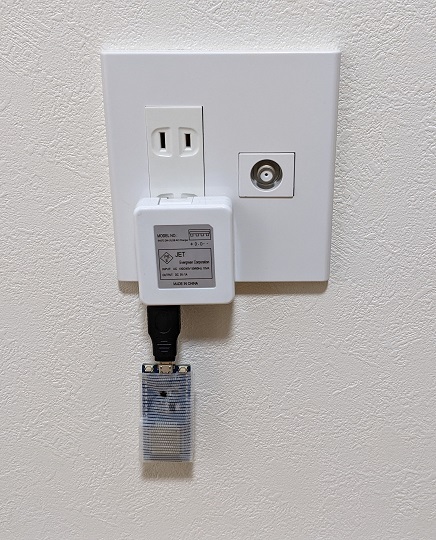

6. ESP32モジュールはBLEとWifiの電波が届く位置を探して、コンセントに繋げたままにする。（基板むき出しが怖いので養生テープで保護した）

memo

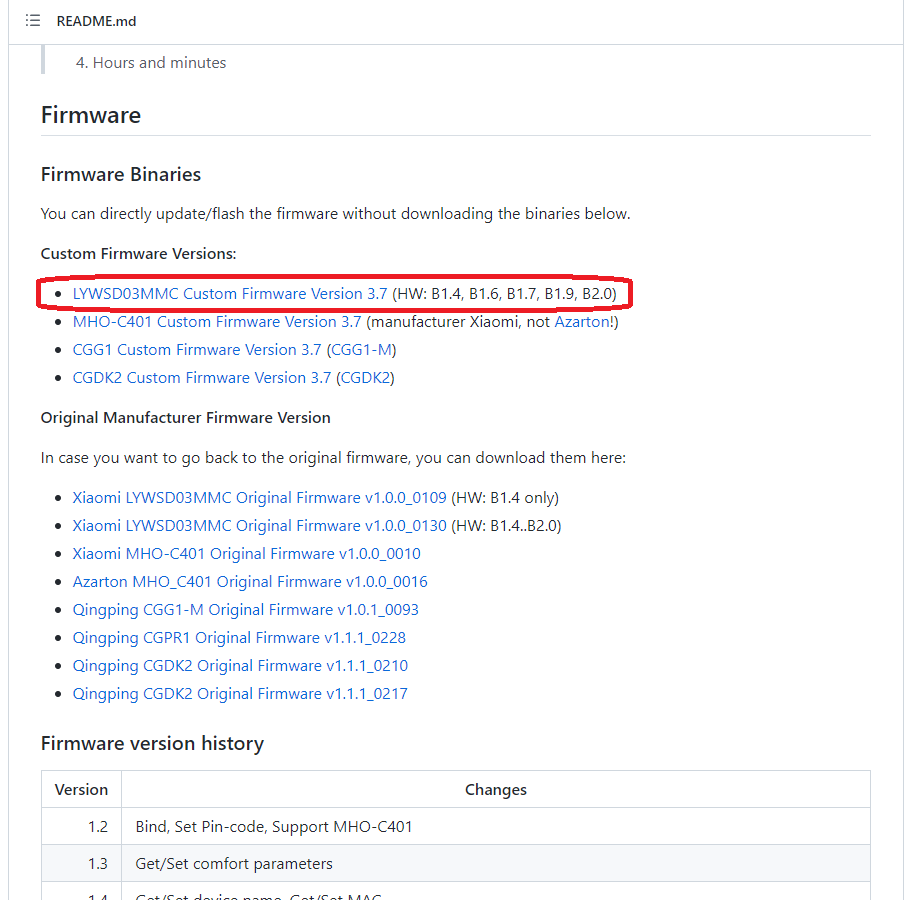

LYWSD03MMC
